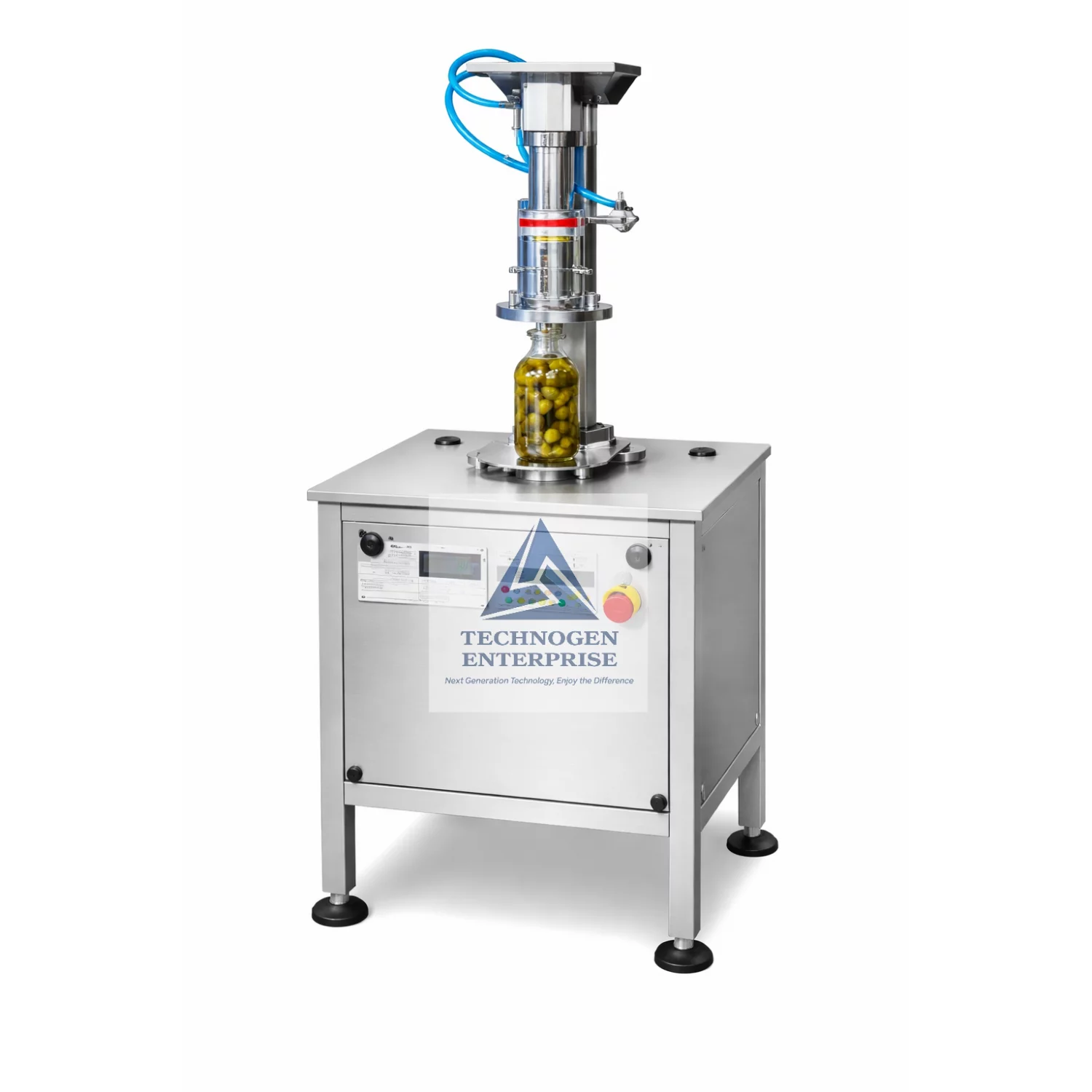

Semi Automatic Lug Capping Machine Details
Technogen Enterprise, Ahmedabad, India, is a reputed manufacturer and supplier of Semi Automatic Lug Capping Machines, offering reliable and cost-effective solutions for secure container sealing. This machine is specifically designed to meet the capping requirements of food processing industries, vinegar manufacturers, pickle producers, and similar applications where lug caps are widely used.
The Semi Automatic Lug Capping Machine is engineered for consistent torque application and high sealing quality. Bottles are placed manually into the machine, after which a motorized pneumatic-powered jaw-type sealing head performs precise and uniform lug capping. This ensures strong cap locking, excellent vacuum retention, and tamper-evident sealing for glass and plastic containers.
With its compact structure, simple operation, and robust construction, this machine is ideal for small to medium-scale production units seeking dependable performance without the complexity of fully automatic systems.
Working Principle
The Semi Automatic Lug Capping Machine operates using a motorized pneumatic jaw-type sealing mechanism. The operator manually places the bottle with a lug cap into the machine. Once positioned, the sealing cycle is initiated, and the pneumatic jaws apply controlled pressure and torque to the lug cap.
The jaws rotate and lock the cap securely onto the container, ensuring uniform sealing without damaging the cap or container. The motorized head movement guarantees repeatable results, while the pneumatic system ensures smooth, controlled operation with minimal noise and vibration.
Key Advantages
-
Delivers consistent and reliable lug cap sealing
-
Suitable for glass and plastic containers
-
Ideal for food-grade and acidic products
-
Simple operation with minimal training required
-
Compact design saves floor space
-
Low power consumption and noise level
-
Cost-effective solution for growing businesses
Salient Features
-
Bottle adjustment scale for precise positioning
-
Designed to work with one size of lug cap and bottle
-
Motorized pneumatic-powered jaw-type sealing head
-
Compact and versatile machine construction
-
Built-in front-mounted control panel
-
Quick and easy machine setup
-
Motorized head movement for uniform sealing
-
No change parts required for different container diameters
-
Low noise operation suitable for food processing environments
-
Low power consumption
-
Adjustable bottle height gauge for fast changeover
-
PLC interface for controlled and reliable operation
Machine Construction and Design
The Semi Automatic Lug Capping Machine is constructed to withstand continuous industrial use while maintaining hygiene and safety standards required in food and beverage applications.
-
Rigid machine frame for vibration-free operation
-
Smooth surface finish for easy cleaning
-
Compact footprint suitable for limited production areas
-
Ergonomically designed for operator comfort
-
Durable components ensuring long service life
Capping Head System
The jaw-type capping head is the core component of the machine, designed for precise and damage-free sealing.
-
Pneumatic-powered jaw mechanism
-
Motorized rotation for consistent torque
-
Ensures uniform lug engagement
-
Prevents cap deformation and bottle breakage
-
Suitable for various lug cap profiles
Control System
The machine is equipped with a simple yet effective control system designed for ease of operation and reliability.
-
PLC-based control interface
-
Front-mounted control panel
-
Easy start/stop operation
-
Stable and repeatable sealing cycles
-
Designed for low maintenance
Operational Flexibility
This Semi Automatic Lug Capping Machine is designed to adapt easily to different production environments.
-
Manual bottle and cap feeding
-
Adjustable height gauge for quick setup
-
Works with a wide range of bottle heights
-
Handles multiple bottle diameters without change parts
-
Suitable for intermittent and continuous operation
Applications
-
Food processing industry
-
Pickle manufacturing units
-
Vinegar bottling plants
-
Sauce and condiment packaging
-
Jam and preserve packaging
-
Specialty food container sealing
Industries Served
-
Food and beverage industry
-
Agro-based food processing units
-
Small and medium packaging facilities
Benefits for Manufacturers
-
Ensures hygienic and secure packaging
-
Improves cap sealing consistency
-
Reduces product rejection
-
Enhances shelf life of packed products
-
Minimizes operator fatigue
-
Affordable solution with high return on investment
-
Reliable sealing without complex automation
Maintenance and Serviceability
-
Easy access to critical components
-
Minimal wear parts
-
Low maintenance requirement
-
Simple cleaning procedure
-
Long operational life
Technical Specifications – Semi Automatic Lug Capping Machine
| Parameter | Specification |
|---|---|
| Model | TGLC-20SM |
| Feeding Technology | Bottle and Cap Feeding – Manual |
| Output Capacity | 20 Containers per Minute (Depends on Human Efficiency) |
| Number of Sealing Heads | 1 No. |
| Lug Capping Diameter Range | 18 mm to 90 mm |
| Bottle Diameter Range | 22 mm to 100 mm |
| Bottle Height Range | 58 mm to 240 mm |
| Electrical Motor | 1 HP / 440 V / 3 Phase / 50 Hz (Four Wire) |
| Power Consumption | 1 kW |
| Electrical Supply | 230 V – Single Phase – 50 Hz |
| Overall Dimensions (L × W × H) | 1000 × 720 × 1400 mm (Approx.) |
| Net Weight | 200 kg (Approx.) |
| Gross Weight | 350 kg (Approx.) |
| Change Parts Required | Lug Capping Head (If Lug Cap Size Changes) |
Why Choose This Machine
The Semi Automatic Lug Capping Machine from Technogen Enterprise offers a practical balance between performance, reliability, and affordability. Its robust jaw-type sealing mechanism ensures high-quality capping suitable for food-grade applications, while its compact design and low operational cost make it an excellent choice for manufacturers aiming to enhance packaging quality without investing in full automation.
Technogen Enterprise, Ahmedabad, India, continues to support food and packaging manufacturers with dependable machinery engineered for real-world production needs. The Semi Automatic Lug Capping Machine is designed to deliver consistent sealing performance, operational simplicity, and long-term value for businesses seeking efficient lug capping solutions.
